Medical Used Centralized Clean Purification Air Conditioner Air Handling Unit AHU

Product Description

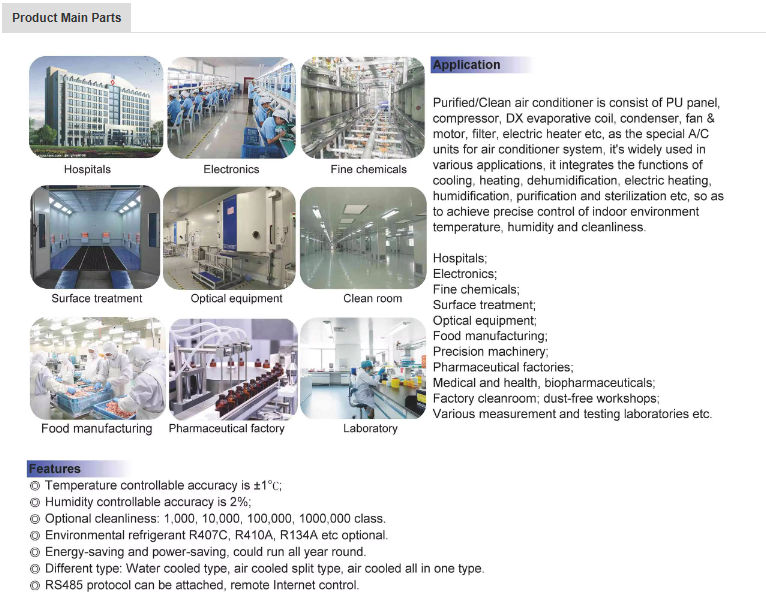

Purified/Clean air conditioner is consist of PU panel, compressor, DX evaporative coil, condenser, fan & motor, filter, electric heater etc, as the special A/C units for air conditioner system, it's widely used in various applications, it integrates the functions of cooling, heating, dehumidification, electric heating, humidification, purification and sterilization etc, so as to achieve precise control of indoor environment temperature, humidity and cleanliness.

Product Features

1) Temperature controllable accuracy is ±1°C;

2) Humidity controllable accuracy is 2%;

3) Optional cleanliness: 1,000, 10,000, 100,000, 1000,000 class.

4) Environmental refrigerant R407C, R410A, R134A etc optional.

5) Energy-saving and power-saving, could run all year round.

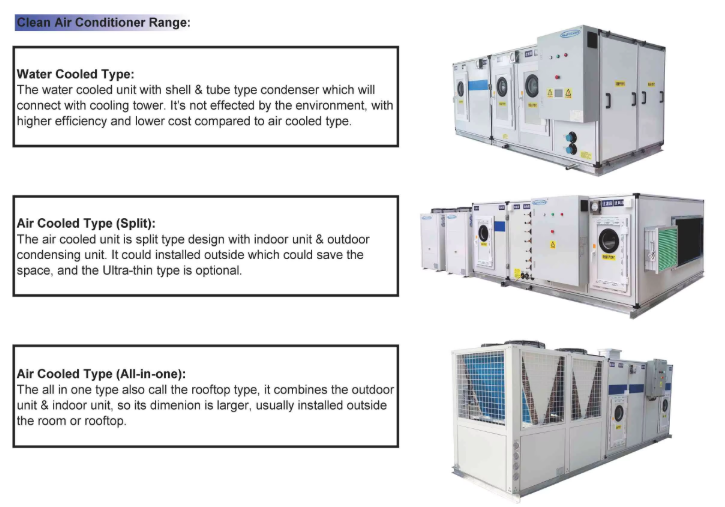

6) Different type: Water cooled type, air cooled split type, air cooled all in one type.

7) RS485 protocol can be attached, remote Internet control.

Product Overview

* Compact Design;

* Sandwich Structure with Double Skin;

* PU Panel Thickness 25~30mm;

* Variable Air Flow & Capacity;

* External Static Pressure 150-650Pa;

* Optional filter G4, F8, H13 etc;

* Optional Modular Function:

-- Electric Heating;

-- Humidity;

-- HEPA Filter;

-- Sterilization etc;

FAQ

Q1: What information of AHU do you need to provide in order to get a quotation?

A1: Generally, for Air Handling Unit we need to know the following information:

1) Cooling capacity;

2) Air flow, fresh air volume?

3) Static pressure & Air filter etc;

4) Panel thickness 25mm, 30mm, 50mm etc.

5) Chilled water type or DX type with outdoor unit?

6) Application of the air handling unit?

7) Other special requirement?

Q2: Can I have a samples for testing before ordering products?

A2: Yes, you can. We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.

Q3: What is the warranty of products?

A3: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
